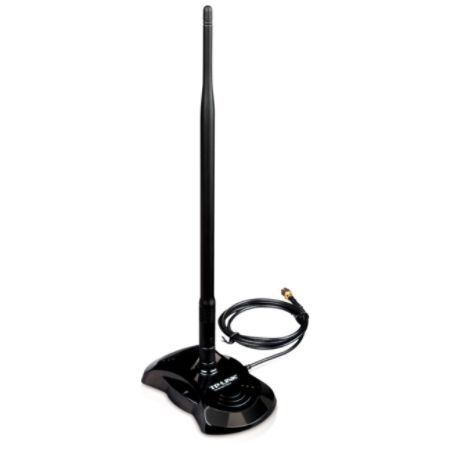

TP-LINK Indoor Desktop Omni-directional Antenna Item # 160573
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
160573
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
TL-ANT2408C Indoor Omnidirectional Antenna boosts your signal to a higher range. This antenna feature is magnetic base with 130cm extension cable for flexible deployment. Very easy to install, no software required.
Product Details
| Item # | 160573 |
| OfficeMax # | 24025804 |
| Manufacturer # | GD6410 |
| Vertical Beamwidth | 15° |
| Additional Information | Desktop Mount; VSWR: 1.92 : 1 Max; Cable Length: 1.3m; Half-Power Beamwidth:Horizontal: 360°; Vertical: 15° |
| Directivity | Omni-directional |
| Product Name | TL-ANT2408C Indoor Omnidirectional Antenna |
| Antenna Gain | 8 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Number of Connectors | 1 |
| Application/Usage | Wireless Data Network |
| Polarization | Linear Vertical |
| brand name | TP-LINK |
| frequency | 2.40 GHz to 2.48 GHz |
| Frequency Band Type | UHF |
| impedance | 50 Ohm |
| Application | Indoor |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| connector type | RP-SMA |
| model name | TL-ANT2408C |
| Horizontal Beamwidth | 360° |
| Frequency Range | 2.4 - 2.4835 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
Indoor desktop omni-directional antenna TL-ANT2408C operates in the 2.4-2.5 GHz band and provides 8dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA Male(Plug) connector guaranteeing wider compatibility with most of the wireless equipments.Replacing your wifi antenna with TL-ANT2408C will significantly increase the range and strength of your wifi signal. This quality built omni-directional antenna is a direct replacement for the antenna that comes standard with your router, access point. Because it is omni-directional, no aiming is equired - it can send and receive wifi in all directions.
-
Easy To Use
Installation is very easy - just detach your device's factory antenna and attach our booster antenna and you'll experience an instant increase in signal coverage and stability. Please note that the increase in signal strength depends mostly on your router or adapter; upgrading the antennas helps but the signal cannot transmit or receive at a level that your modem or adapter does not have.
See More:
Features
- Compliant with 802.11n/b/g (2.4GHz)
- 8dBi signal gain
- 130cm low-loss extension cable
- Magnetic Base for flexible deployment
- RP-SMA Male connector
Specifications
| ANTENNA | |
|---|---|
| Dimension | 2.0 ×7.9 in （50 x 201 mm） |
| Frequency | 2.4GHz |
| Impedance | 50 Ohms |
| Gain | 8 dBi |
| Radiation | Omni-directional |
| VSWR(MAX.) | 1.92:1 |
| HPBW/H( °) | 360° |
| HPBW/V( °) | 15° |
| Polarization | Linear, Vertical |
| Mounting | Wall Mount/Desktop |
| Application | Indoor |
| Operating Temp. | -40℃~65℃(-40℉~149℉) |
| Storage Temp. | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Datasheet
-
TL-ANT2408C Datasheet
TL-ANT2408C Datasheet - opens PDF
PDF, 876K, 2 pages
